Gasket Listings

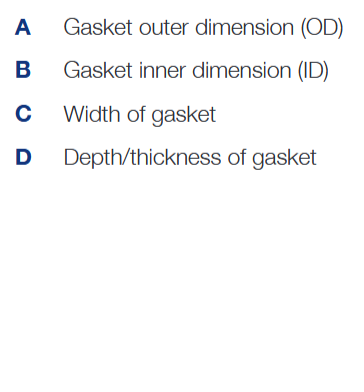

Identification

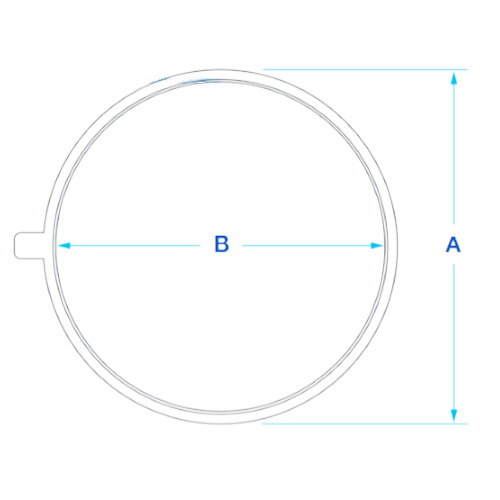

Gasket section diagram
A
Gasket outer dimension (OD)
B
Gasket inner dimension (ID)
C

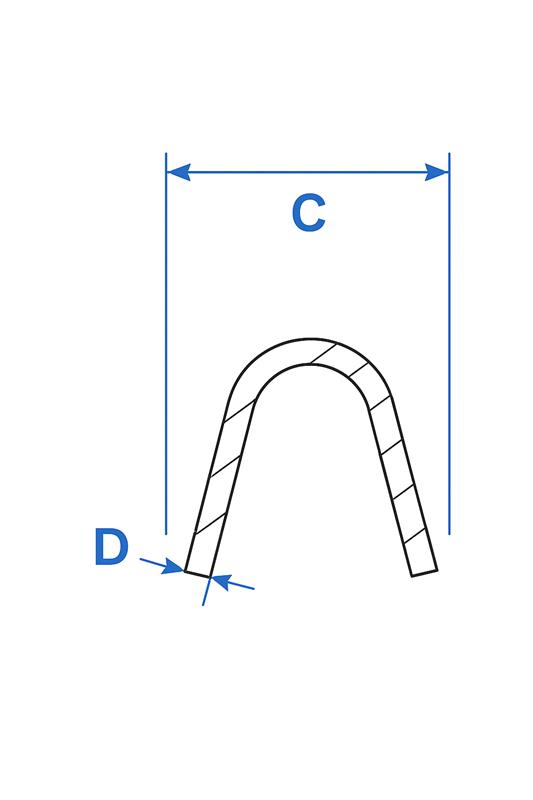

Width of gasket
D
Depth/thickness of gasket

Gasket 1100030790
Location
Seal Plate to Comp Cover
A - OD
121.00
B - ID
113.00
C - Width
0.50
D - Depth
0
Секция
Flat
Gasket 1102012790
Location
Oil-Out Adaptor
A - OD
0.00
B - ID
0.00
C - Width
0.50
D - Depth
0
Секция
Flat
Gasket 1102012792
Модель турбины
GT10-25Z
Location
Turbine Housing
A - OD
79.00
B - ID
0.00
C - Width
0.30
D - Depth
3.4
Секция
C
Материал
Inconel
Gasket 1102012793
Модель турбины
GT10-25Z
Location
Compressor Housing
A - OD
0.00
B - ID
0.00
C - Width
0.90
D - Depth
0
Секция
Stepped
Материал
Steel
Gasket 1102012794
Модель турбины
GT10-25Z
Location
Turbine Housing - Bypass Valve
A - OD
0.00
B - ID
0.00
C - Width
1.10
D - Depth
0
Секция
Stepped
Gasket 1102015795
Модель турбины
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
106.10
B - ID
99.70
C - Width
0.30
D - Depth
1.2
Секция
Stepped
Материал
Steel
Gasket 1102015796
Модель турбины
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
106.00
B - ID
91.20
C - Width
0.30
D - Depth
1
Секция
Stepped
Материал
Steel
Gasket 1102015798
Модель турбины
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
115.20
B - ID
100.00
C - Width
0.30
D - Depth
0.8
Секция
Stepped
Материал
Steel
Gasket 1102015799
Модель турбины
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
115.20
B - ID
108.00
C - Width
0.40
D - Depth
0.8
Секция
Stepped
Материал
Steel
Gasket 1102017791
Location
Turbine Housing To Bypass Valve
A - OD
0.00
B - ID
0.00
C - Width
0.80
D - Depth
0
Секция
Stepped
Материал
Steel
Gasket 1102017795
Модель турбины
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
119.00
B - ID
113.00
C - Width
0.10
D - Depth
3.5
Секция
C
Материал
Steel
Gasket 1102017796
Модель турбины
GT15-25
Location
Bearing Housing - Turbine Housing
A - OD
122.00
B - ID
115.00
C - Width
0.30
D - Depth
0
Секция
Flat
Материал
Steel
